COUGAR FORZA 135 AIRCOOLER
FORZA 135
STRENGTH SCREAMS...BUT POWER WHISPERS

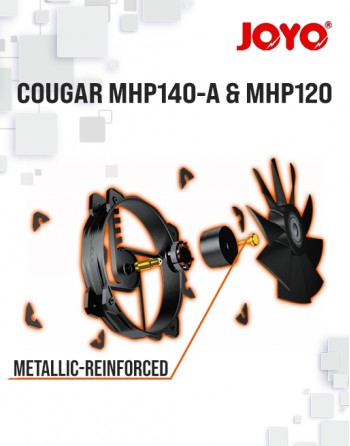

For enthusiasts and gamers seeking to push their systems to the limit, the Forza 135 offers an exceptional balance of ultra-silent operation and powerful cooling as a dual tower air cooler for high-level CPUs. Its front cover is uniquely designed and it is equipped with COUGAR’s high-performance fans, the MHP140-A and MHP120.
Click Here to Read Delivery Policy
Read our Warranty and Terms
Specifications
| CPU Socket | Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU) AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU |
|
| Heatsink | ||
| CPU touched base | Copper base with nickel plated | |
| Heat pipe diameter | 6 mm | |
| Heat pipe number | 7 units | |
| Heat pipe finish | Copper with nickel plated | |
| Craftsmanship | Reflow | |

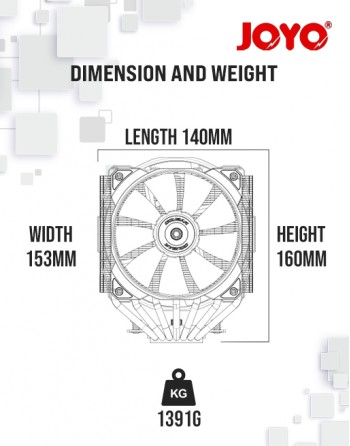

| Dimension (WxDxH) | 50 x 135 x 155mm | |
| Weight w/o Fan | 1041 g | |
| Weight Incl. Fan | 1391 g | |
| Fans | ||
| Fan Model | MHP120 | |
| Dimensions (WxDxH) | 120 x 120 x 25 mm | |
| Fan Speed | 600-2000 RPM±200RPM | |
| Air Flow | 82.48 CFM / 143.53 m3/h (± 10%) | |
| Air Pressure | 4.24 mm H2O±10% | |
| Acoustic Noise | 34.5 dB(A) (Max.) | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.23 A | |
| Power Consumption | 2.76 W ± 10% | |
| Bearing Type | HDB Hydro Dynamic Bearing | |
| Cable Length | 200 mm | |
| Connector & Control | 4 Pin PWM | |
| Fans | ||
| Fan Model | MHP140-A | |
| Dimensions (WxDxH) | 140 x 140 x 25 mm | |
| Fan Speed | 500-1500 RPM±150RPM | |
| Air Flow | 72.93 CFM / 143.53 m3/h (± 10%) | |
| Air Pressure | 2.11 mm H2O±10% | |
| Acoustic Noise | 38.5 dB(A) (Max.) | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.23 A | |
| Power Consumption | 2.16 W ± 10% | |
| Bearing Type | HDB Hydro Dynamic Bearing | |
| Cable Length | 200 mm | |
| Connector & Control | 4 Pin PWM | |
FAN-CGR-FORZA-135
Data sheet
- Brand
- COUGAR
- Series
- FORZA
- Model
- FORZA 135
Specific References
